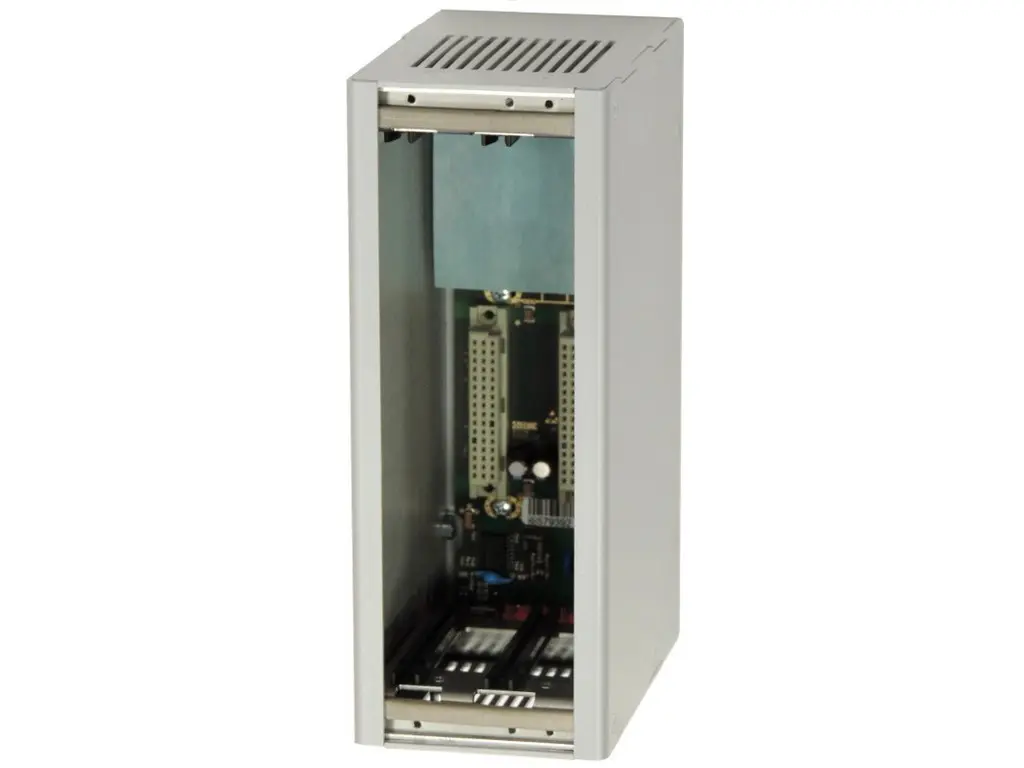

# RTU7M CASE-2E DIN-PD BUS-2E-I

Chassis for 2-slots, DIN rail mounting (vertical or horizontal), including backplane with 2 slots, with integrated power supply 10-60 V DC and communication interface RS-485 (MODBUS RTU and HioCom2 protocol support). The power supply is isolated in t

**Dostupnost:** The goods are made to order

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 221304803215 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | ELVAC |

## Podrobný popis

Chassis for 2-slots, DIN rail mounting (vertical or horizontal), including backplane with 2 slots, with integrated power supply 10-60 V DC and communication interface RS-485 (MODBUS RTU and HioCom2 protocol support). The power supply is isolated in this version, which is safe also for cases, when powering cables are routed outside of installation cabinet. The interface RS-485 is isolated as well, therefore it can be used for communication outside of installation cabinet. The busbar is equipped with termination resistors for optimal working conditions of RS-485. The connectors for powering, RS-485 and terminators setup are located down on chassis.

## Soubory ke stažení

* [Katalog Datasheet Česky](https://www.elvac.eu/files/shop/elvacipc/datasheet/RTU7M_chassis_bus_CPU_modules.pdf)
* [Katalog Datasheet English](https://www.elvac.eu/files/shop/elvacipc/datasheet/en-US/RTU7M_chassis_bus_CPU_modules.pdf)
