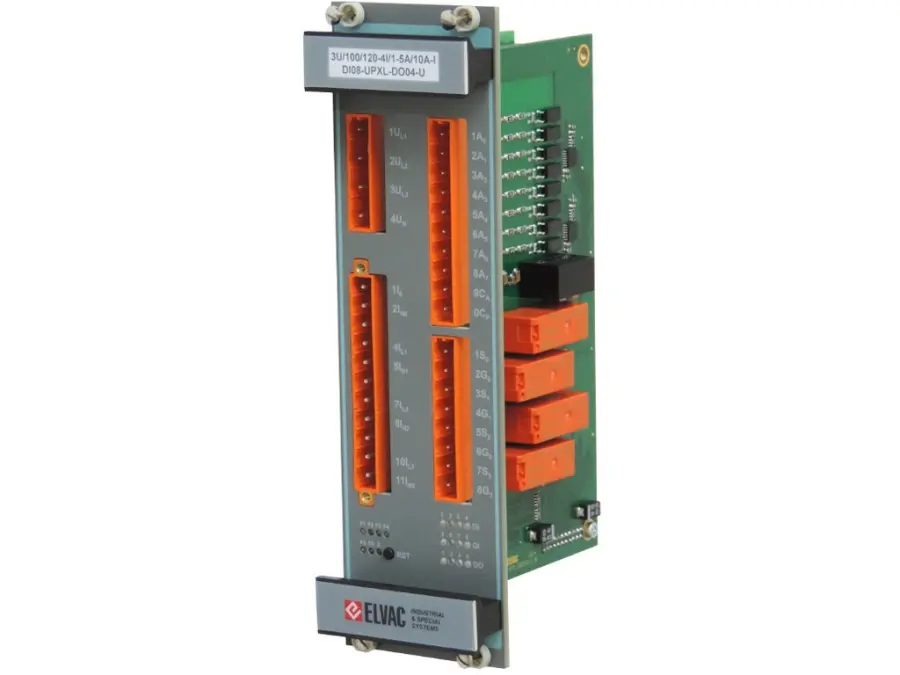

# RTU7M EP-3UA/2.5/3-1U/100/120-4I/1A/30A-I-DI08-UM-DO04-U

Indirect card for analog combined measurement, inputs 3xU/2.5/3 V (only AC measurement, usage with capacitive sensors VSO 25), 1xU/100/120 V, 4xI/1/30 A, isolated, 8xDI/24 VDC, 4xDO. Designed for application of load disconnector / load break switch /

**Dostupnost:** The goods are made to order

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 221320550120 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | ELVAC |

## Podrobný popis

Indirect card for analog combined measurement, inputs 3xU/2.5/3 V (only AC measurement, usage with capacitive sensors VSO 25), 1xU/100/120 V, 4xI/1/30 A, isolated, 8xDI/24 VDC, 4xDO. Designed for application of load disconnector / load break switch / sectionalizer on 20-22 kV network.

## Soubory ke stažení

* [Katalog Datasheet Česky](https://www.elvac.eu/files/shop/elvacipc/datasheet/RTU7M_EP_cards.pdf)
* [Katalog Datasheet English](https://www.elvac.eu/files/shop/elvacipc/datasheet/en-US/RTU7M_EP_cards.pdf)
