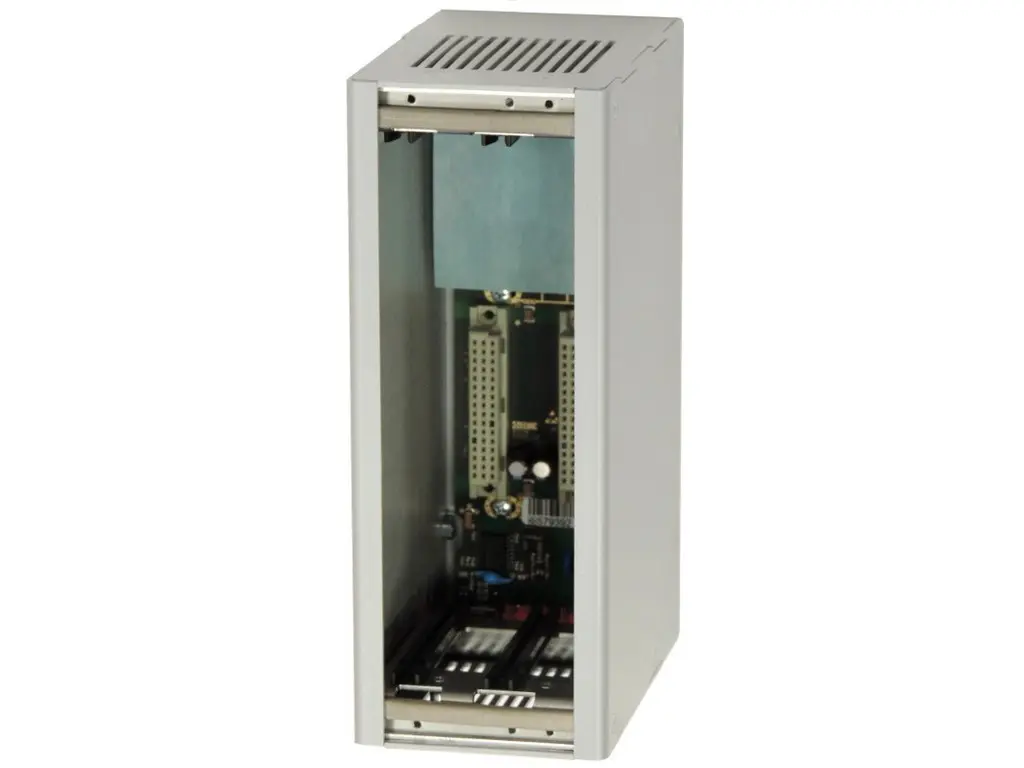

# RTU7M CASE-2E DIN-PD BUS-2E

Chassis for 2-slots, DIN rail mounting (vertical or horizontal), including backplane with 2 slots, with integrated power supply 10-30 V DC and communication interface RS-485 (MODBUS RTU and HioCom2 protocol support). The power supply is not isolated

**Dostupnost:** The goods are made to order

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 221304803205 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | ELVAC |

## Podrobný popis

Chassis for 2-slots, DIN rail mounting (vertical or horizontal), including backplane with 2 slots, with integrated power supply 10-30 V DC and communication interface RS-485 (MODBUS RTU and HioCom2 protocol support). The power supply is not isolated in this version, which is price efficient, but suitable only for powering from other isolated power supply (located close to RTU). This solution is not suitable in cases, when powering cables are routed outside of installation cabinet. The interface RS-485 is not isolated as well, it is suitable for communication between units in the same instalation cabinet.

## Soubory ke stažení

* [Katalog Datasheet Česky](https://www.elvac.eu/files/shop/elvacipc/datasheet/RTU7M_chassis_bus_CPU_modules.pdf)
* [Katalog Datasheet English](https://www.elvac.eu/files/shop/elvacipc/datasheet/en-US/RTU7M_chassis_bus_CPU_modules.pdf)
